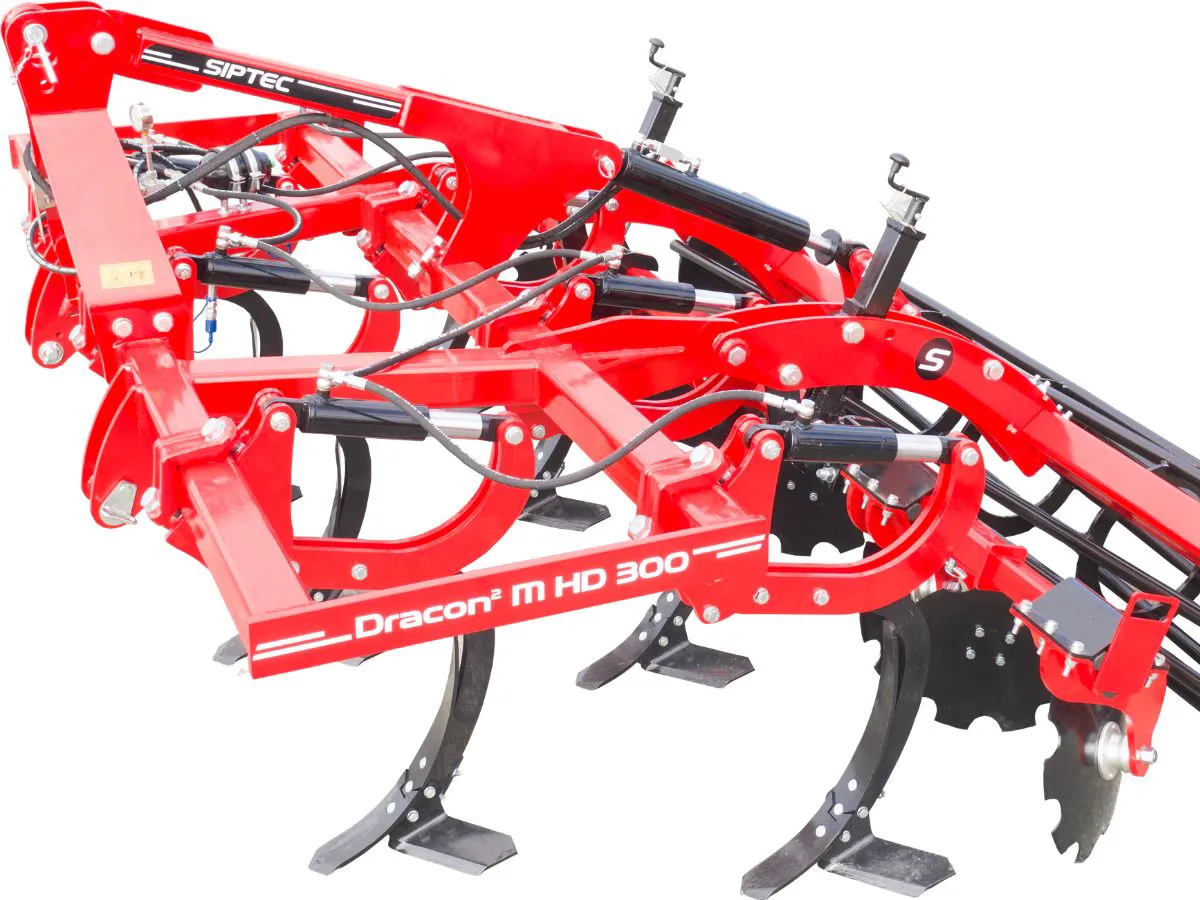

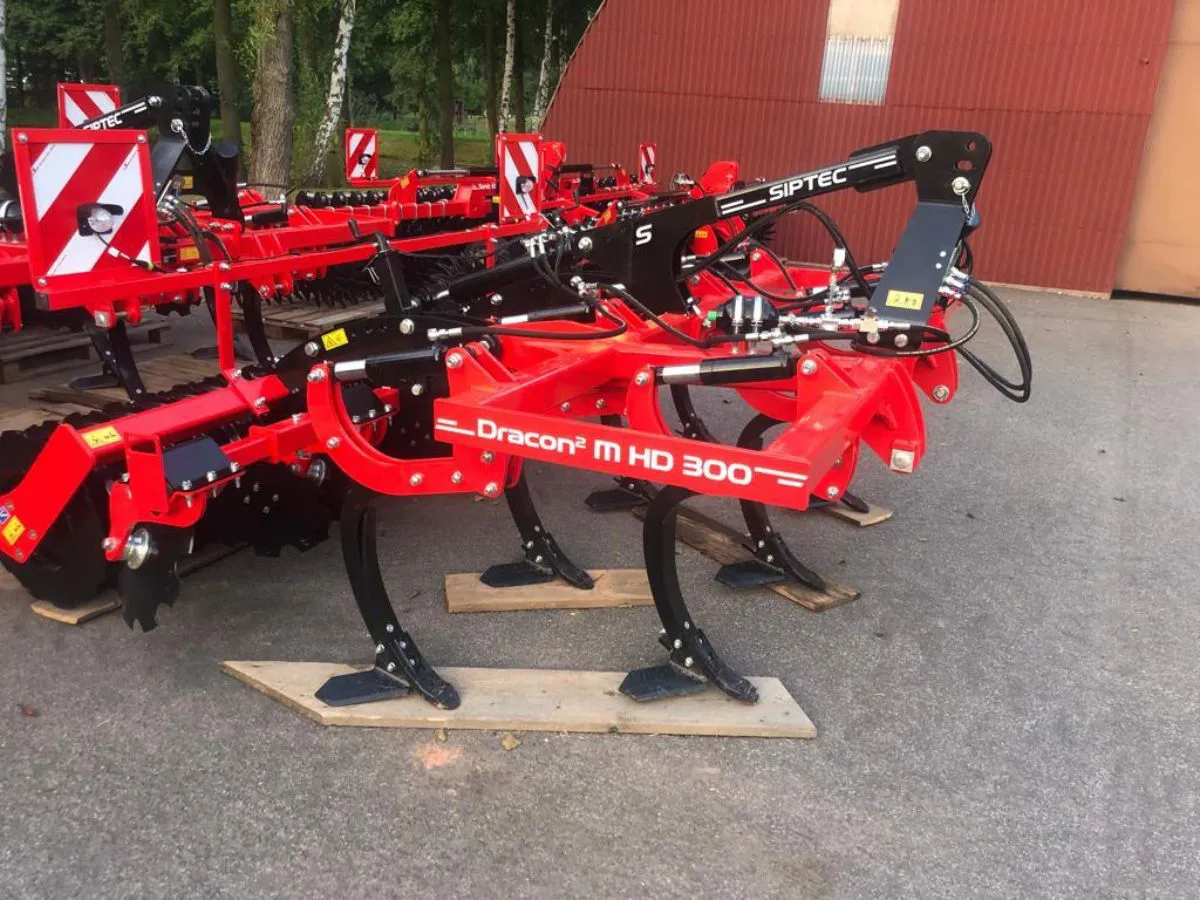

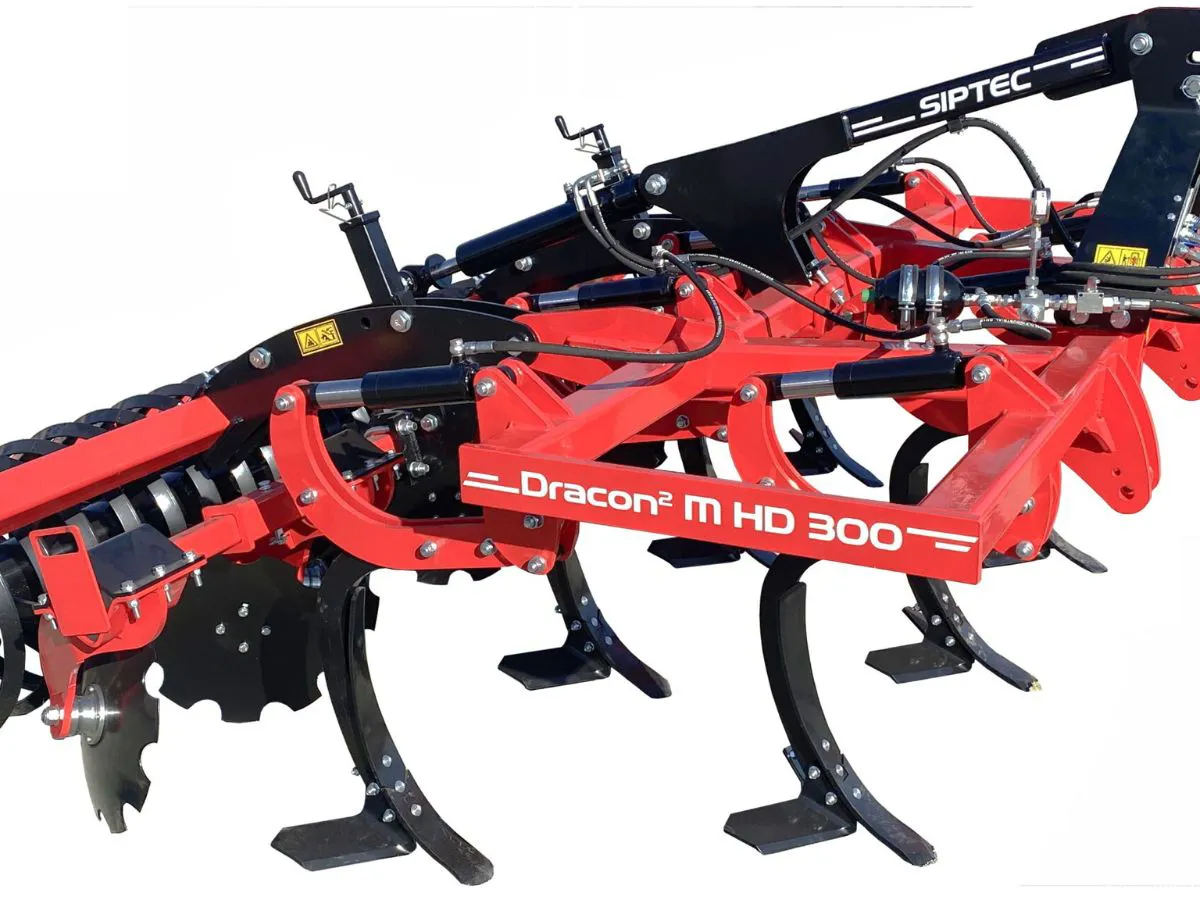

Gruber dezmiristitor Siptec Dragon2 m HD

Specificatii Gruber dezmiristitor Siptec Dragon2 m HD

Aceste grubere sunt echipate cu

• 2 randuri de ancore
• Cadru masiv de 100x100x8 mm
• Distanta intre randuri 750 mm
• Adancime de lucru pana la 350 mm
• Aripi laterale 275 mm
• Discuri de nivelare cu amortizare pe cauciuc
• Diferite tipuri de tavalugi

Specificatii	Dracon² 250	Dracon² 300	Dracon² 350	Dracon² 400	Dracon² R 400	Dracon² R 500
Latime de lucru	2,5 m	3,0 m	3,5 m	4,0 m	4,0 m	5,0 m
Latime transport	2,5 m	3,0 m	3,5 m	4,0 m	3,0 m	3,0 m
Numar ancore	6	7	8	9	9	11
Numar discuri	6	8	8	10	10	12
Greutate fara tavalug Greutate cu tavalug	710 kg 900 kg	810 kg 1010 kg	945 kg 1180 kg	1080 kg 1350 kg	1410 kg 1690 kg	1780 kg 2110 kg
Putere necesara	70-130 CP	90-170 CP	100-180 CP	120-200 CP	120-200 CP	150-240 CP

Tiprui de tavalugi disponibile

Imagine	Denumire	Specificatii
	Tvalavug Inelar (vinclu) Ø 580 mm	3.0 m = 395 kg 3.5 m = 480 kg 4.0 m = 505 kg 5.0 m= 740 kg
	Tavalug prfil U Ø 540 mm	3.0 m = 395 kg 3.5 m = 460 kg 4.0 m = 540 kg 5.0 m = 730 kg
	Tavalug Kracker Ø 580 mm	3.0 m = 615 kg 3.5 m = 710 kg 4.0 m = 835 kg 5.0 m = 1030 kg
	Tavalug inelar tandem (dublu) Ø 2×580 mm	3.0 m = 495 kg 3.5 m = 600 kg 4.0 m = 630 kg 5.0 m = 930 kg

Detalii Gruber dezmiristitor Siptec Dragon2 m HD
